Stainless Steel Safety Shower

H-EXP18GS Stainless Steel Safety Shower

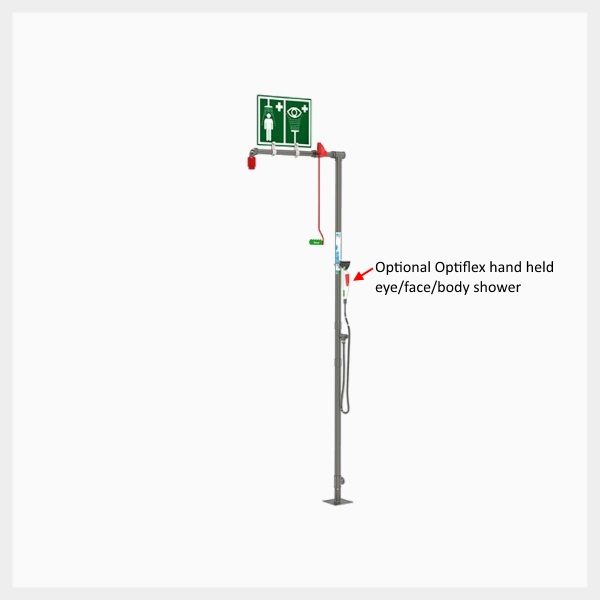

Hughes Safety H-EXP18GS is a general purpose indoor unheated emergency safety shower suitable for use in all applications that don’t require an eye wash and is suitable for environments not subject to the possibility of freezing or overheating. Backed by our 2 year warranty. (Shown with optional Optiflex hand held eye/face/body shower)

Product Code: H-EXP18GS Category:
  • Features
  • Additional Info
  • Reviews (0)

Additional information

Weight 12 kg
Dimensions 150 × 750 × 2320 mm

Location: Indoor
Constant Water Supply: Yes

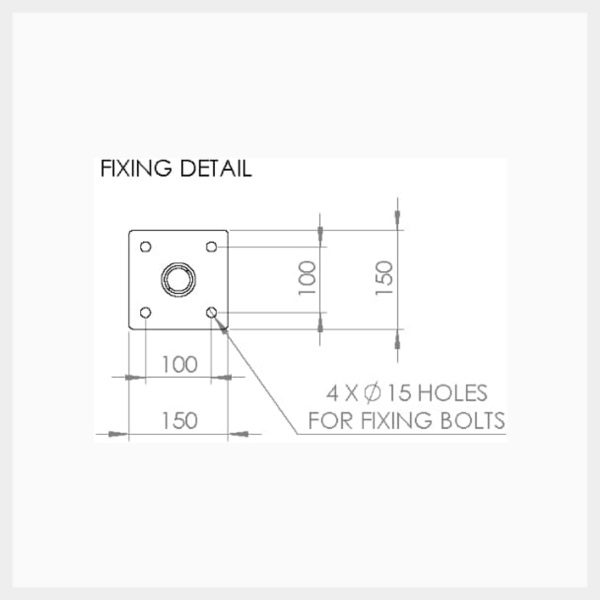

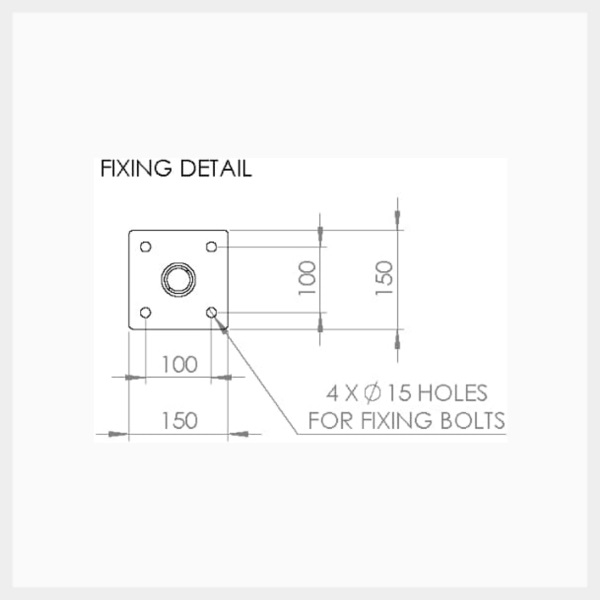

Installation: Free Standing / Floor Mounted
Pipework: Stainless Steel
Designed in accordance with ANSI and EU standards.
Choice of walk-on panel or foot treadle activation enabling automatic operation of the shower.
Fast, easy grip pull-handle activation for ease of use in an emergency.

Pipework and Fittings

316L stainless steel with 150lb (68.0389 kg) medium wall tubulars and fittings

Operating Valves

316L stainless steel, two piece stay open valve

Shower Spray Outlet

Machine moulded nylon 6 red shower nozzle

Standard Finish

Polished brush finish (paint options available)

Water Inlet

1 1/4” Female BSP

Design Operating Pressure

1.5 to 6 BAR G (22 to 87 PSI)
(higher supply pressures accommodated with the incorporation of the optional pressure reducing valve)

Test Pressure

10.3 BAR G (149 PSI)

Minimum Flow at Operating Pressure

Shower: 76 litres/minute minimum

Minimum Ambient Operating Temperature

5º C (41º F)

Maximum Ambient Operating Temperature

35º C (95º F)

Shower Spray Operation

Pull handle (optional foot panel for hands free operation)

The main thing to know is we stand behind our product. All units in the Hughes Safety Shower range have a 2 year warranty. That is double the warranty of any other shower supplier.

– Virtually unbreakable.
– Purpose built patented design.
– Full bore ball valve.
– PTFE seals.
– Made from fully 316 stainless steel.
– 360 degree positively angled spindle.
– Fully enclosed valve stop assembly.
– Glass reinforced nylon lever.

Spray Nozzle:
– Heady duty glass reinforced moulded nylon construction.
– Cyclonic delivery conical spray profile
– Complies with ANSI and Australian Standard spray profile requirements even at lower water pressures.
– Unlike common shower roses it will not become blocked by smaller particles.

– All pipes are made from semi-polished 304 stainless steel.
– All fittings are made from 316 stainless steel.
– Fully 316 stainless steel models are also available.

– The modular approach to construction provides maximum flexibility. All optional fittings including eyewash, eyewash operation pedal, signage and lighting can be easily retro-fitted to your safety shower if required.
