Stainless Steel Safety Shower and Covered ABS Eye/Facewash

H-EXPSD18GS45G Stainless Steel Safety Shower and Covered ABS Eye/Facewash

Hughes Safety H-EXPSD18GS45G is an indoor unheated emergency safety shower with low level water inlet incorporating a closed ABS bowl eye/face wash, the orientation of which can be varied to suit individual requirements. Suitable for use in all environments not subject to the possibility of freezing or overheating. Backed by our 2 year warranty.

Product Code: H-EXPSD18GS45G Category: Tag:
  • Features
  • Additional Info
  • Reviews (0)

Additional information

Weight 17 kg
Dimensions 475 × 750 × 2320 mm
Features

Location: Indoor
Constant Water Supply: Yes
Installation: Free Standing / Floor Mounted
Features: Eye/Face Wash
Pipework: Stainless Steel
Designed in accordance with ANSI and EU standards.
Fast, easy grip pull-handle shower activation for ease of use in an emergency.

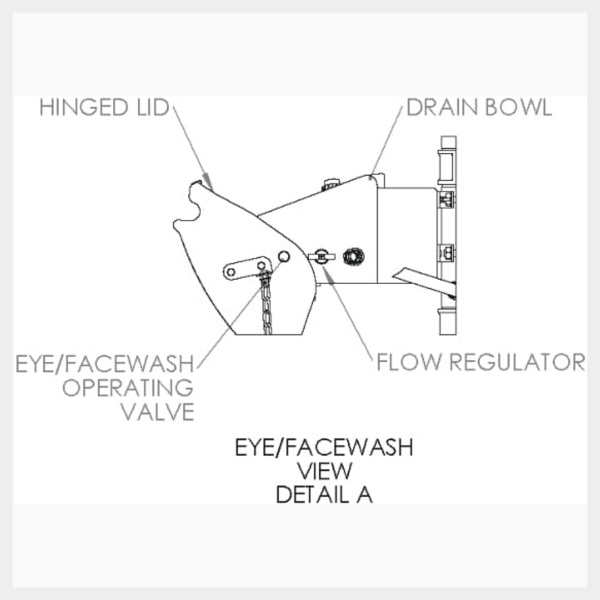

Integral lid on eye/face wash connects to the water valve for automatic operation when the lid is pulled down. The lid also ensures that the bowl remains clean and free from contamination.
High flow rate aerated diffusers provide an improved washing action and prevent further injury to the eyes.

Pipework and Fittings

316L stainless steel with 150lb medium wall tubulars and fittings

Shower Spray Outlet

Machine moulded nylon 6 red shower nozzle

Eye/face Wash Bowl/lid

Acrylic capped ABS

Eye Wash Diffusers

Chrome plated brass with stainless steel mesh

Standard Finish

Polished brush finish (paint options available)

Flow Rate

Water Inlet

Design Operating Pressure

2.0 to 6 BAR G (29 to 87 PSI)
(higher supply pressures accommodated with the incorporation of the optional pressure reducing valve)

Test Pressure

10.3 BAR G (149 PSI)

Minimum Flow at Operating Pressure

Shower: 76 litres/minute minimum
Eye/face wash: 12 litres/minute minimum

Minimum Ambient Operating Temperature

5º C (41º F)

Maximum Ambient Operating Temperature

35º C (95º F)

Shower Spray Operation

Pull handle (optional foot panel for hands free operation)

Eye/face Wash Operation

Pull lid down (optional foot treadle for hands free operation)

The main thing to know is we stand behind our product. All units in the Hughes Safety Shower range have a 2 year warranty. That is double the warranty of any other shower supplier.

Valves:
– Virtually unbreakable.
– Purpose built patented design.
– Full bore ball valve.
– PTFE seals.
– Made from fully 316 stainless steel.
– 360 degree positively angled spindle.
– Fully enclosed valve stop assembly.
– Glass reinforced nylon lever.

Spray Nozzle:
– Heady duty glass reinforced moulded nylon construction.
– Cyclonic delivery conical spray profile
– Complies with ANSI and Australian Standard spray profile requirements even at lower water pressures.
– Unlike common shower roses it will not become blocked by smaller particles.

Piping:
– All pipes are made from semi-polished 304 stainless steel.
– All fittings are made from 316 stainless steel.
– Fully 316 stainless steel models are also available.

Construction:
– The modular approach to construction provides maximum flexibility. All optional fittings including eyewash, eyewash operation pedal, signage and lighting can be easily retro-fitted to your safety shower if required.
