The EcoBund portable bund system is designed for maximum efficiency, durability and cost effectiveness.
Each EcoBund is made from 1000gsm geomembrane engineered for maximum chemical resistance.

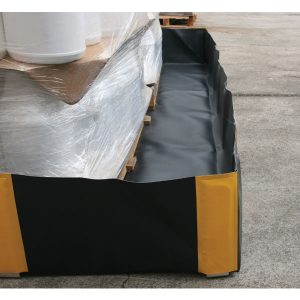

The seam free contruction and new generation scrim ensures ultimate strength. To ensure maximum space efficiency, the 3mm aluminium wall braces are secured in high-frequency welded wall pockets and extend under the the bund floor.
|TSSEB2||2.5 x 1.6 x 0.25||1000||2|
|TSSEB4||2.5 x 2.8 x 0.25||1750||4|
|TSSEB6||2.5 x 4.0 x 0.25||2500||6|
|TSSEB8||2.5 x 5.2 x 0.25||3250||8|
|TSSEB10||2.5 x 6.4 x 0.25||4000||10|
|TSSEB16||2.5 x 10 x 0.25||6250||16|
|TSSEB20||2.5 x 12.5 x 0.25||7800||20|
|TSSEB24||2.5 x 15 x 0.25||9375||24|
For increased durability on unsealed and unprepared surfaces, puncture resistant geotextile underblankets are available.
If generators or pumps are mounted inside the portable bund, anti vibration nitrile pads can be added to the package.
A passive oil/water filter can be added if storing hydrocarbons in exposed areas. The addition of the filter will allow all rain water to drain out of the portable bund but trap 99.8% of hydrocarbons.
