Portable Eye/Face Wash Unit

Hughes Safety H-STD58G portable eye wash offers an effective solution in locations that are unsuitable for fixed installations and should be used as a secondary safety measure to supplement plumbed in eye/face wash units. The stainless steel cylinder with water capacity of 45L is capable of washing eyes and face simultaneously for up to 15 minutes.

Weight

38 kg

Dimensions

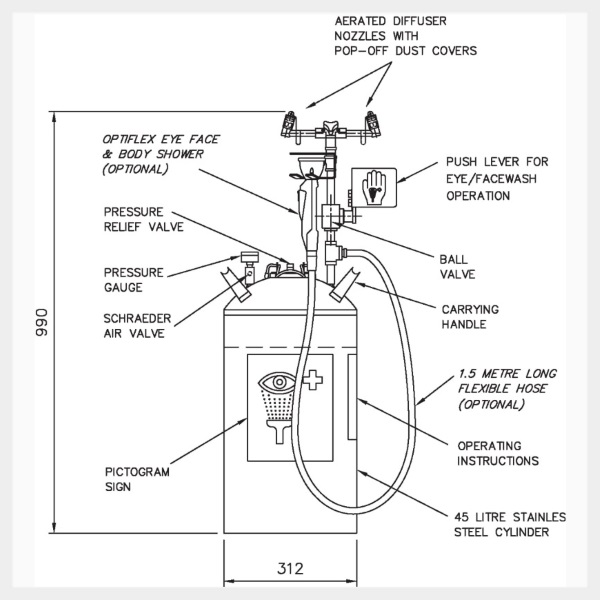

375 × 312 × 990 mm

Features

Dust covers and push lever operation for ease of use.
For decontamination of body parts subjected to minor contamination, an optional Optiflex eye, face and body shower can be fitted.
Type: Self-contained/Portable
Capacity (Litres): 45

Body

Material: Stainless steel cylinder
Capacity: 45 litres

Services

Operating Pressure: 6.9 BAR G (100 PSI)
Test Pressure: 13.8 BAR G (200 PSI)
Burst Pressure: 69 BAR G (1000 PSI)
Flow Rate: 1.5 litres per minute (0.4 gpm)

Environmental Operating Temperature

Minimum Ambient Operating Temperature: 5º C (41º F)
Maximum Ambient Operating Temperature: 35º C (95º F)

Activation/Operation

Push plate operated
